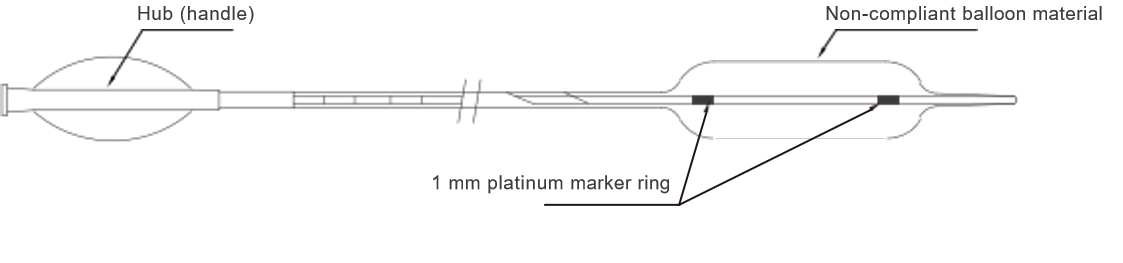

Structural Diagram and Technical Parameters ：
- Nominal balloon pressure (NP): 14 atm
- Rated burst pressure (RBP): RBP is 22 atm for balloon diameters ranging from 1.5 to 4.5 mm;
- 20 atm for balloon diameters ranging from 4.75 to 5.0 mm Compatible guiding catheters: 2.00 mm/6F
- Compatible guide wires: 0.36 mm/0.014 inch
Specifications/Models：
| Diameter (mm) | ||||||||||||||
| Length (mm) | 1.5 | 2 | 2.25 | 2.5 | 2.75 | 3 | 3.25 | 3.5 | 3.75 | 4 | 4.25 | 4.5 | 4.75 | 5 |
| 6 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 8 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 10 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 12 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 15 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 20 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 25 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 30 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |

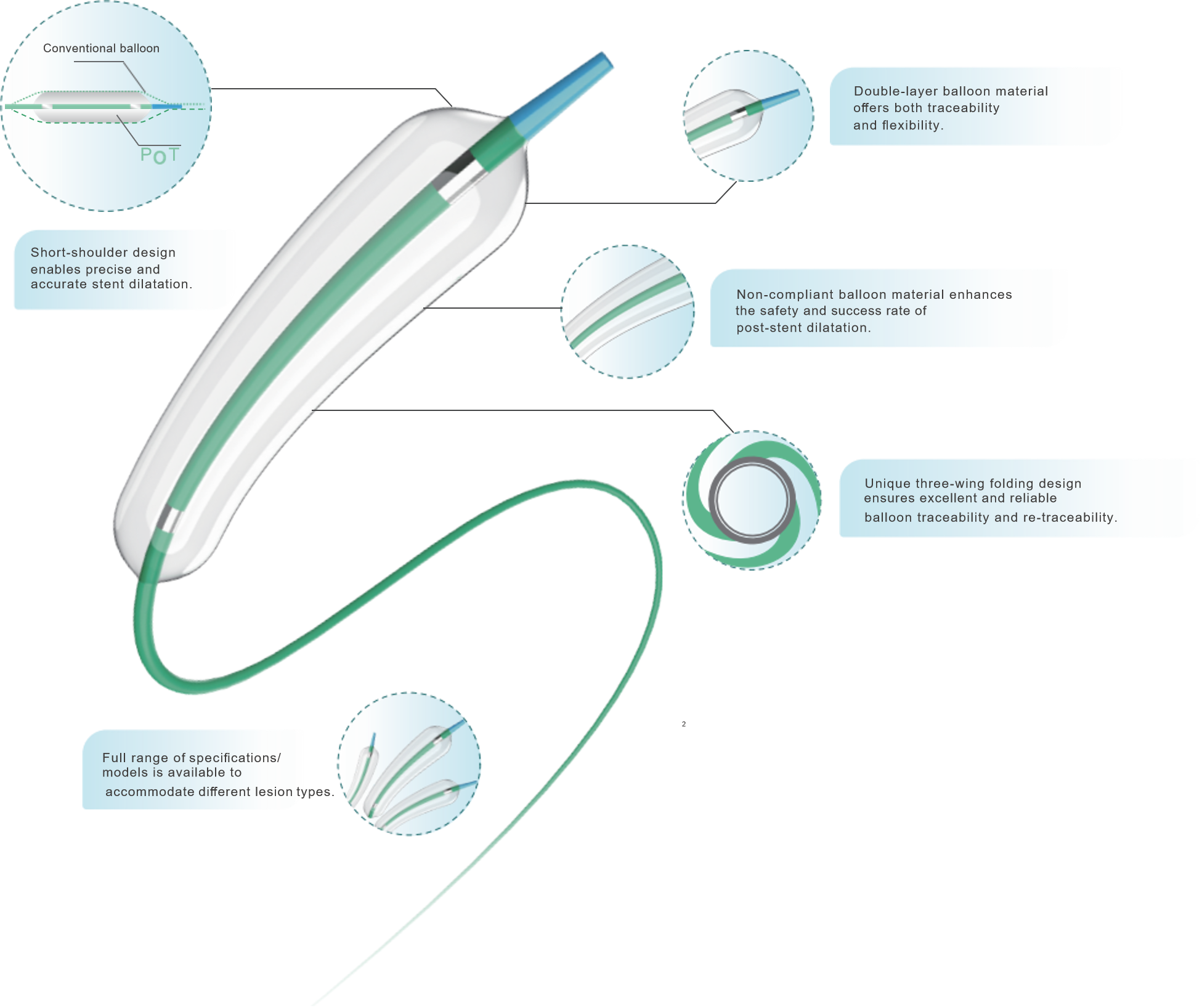

Product Features：
Short shoulder Design

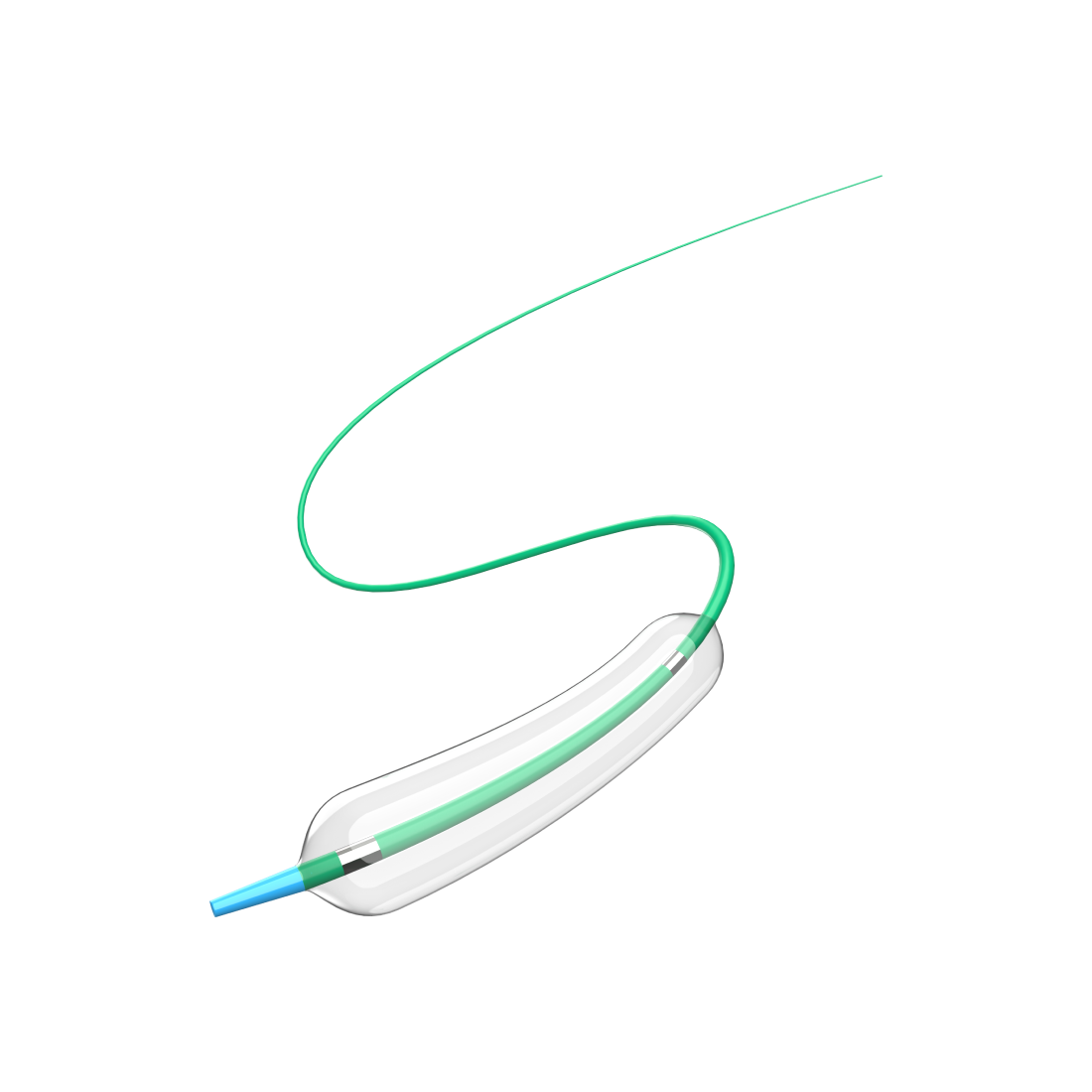

Conventional NC balloon Ranger Tadpole Coronary Balloon Dilatation Catheter
Balloon shoulder length:2.0 mm Balloon shoulder length:0.6 mm
Accurate Stent Dilatation
Insufficient Dilatation
Insufficient Dilatation
Excessive Dilatation
Ranger TadpoleNC Accurate Dilatation
Balloon Shoulder Length
( mm )
Outer Diameter
( mm )
